For some standard profiles within our Pneuma-Seal and Q brands, retention systems are available. For each system (other than the clips), we offer standard lengths and, for an additional charge, can custom cut, slot, or drill. Contact us today to learn more about our capabilities. Detail drawings are available by inflatable profile within the Pneuma-Seal Standards section in the Retainer tab (sign-in required).
Inflatable Seal and Clamp Retention Systems

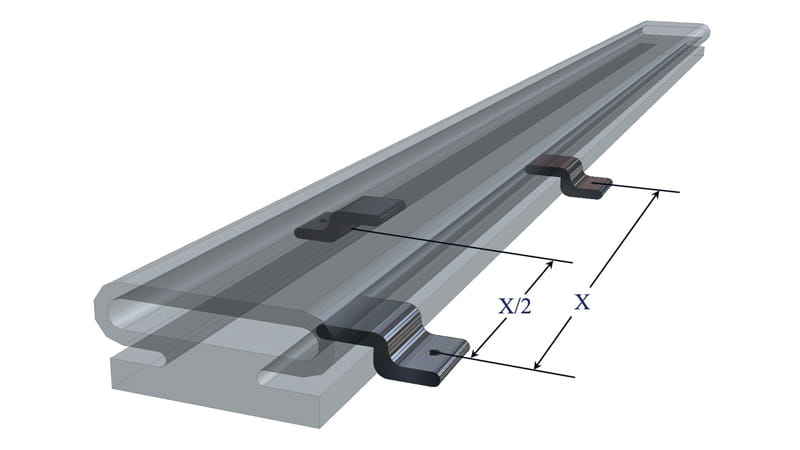

Z-Clips for Type 1 Inflatable Profiles **NEW**
Z-Clips provide for the most flexibility, but require more work to install. Clips are typically installed on alternating sides of the seal at defined intervals (see below). Intervals can be adjusted depending on seal configuration. In many instances, for rectangular seals, Z-clips are used to hold the corners down while a Two-Piece retainer is used to hold the straight sections. The new z-clip designs are wider and thicker, which allow for more holding power. They are also made of stainless steel.
| Part No | Z (In) | Z (mm) | X (in) | X (mm) | For Seal Profile |
| PRS285-SS | 1.625 | 41.28 | 4.00 | 101.60 | PRS573 |
| PRS286-SS | 1.88 | 47.50 | 5.00 | 127.00 | PRS978, PRS717 |
| PRS287-SS | 2.00 | 50.80 | 6.00 | 127.00 | PRS537, PRS580 |
| PRS288-SS | 3.00 | 76.20 | 10.00 | 254.00 | PRS535, PRS582 |
| PRS289-SS | 3.875 | 98.43 | 15.00 | 381.00 | PRS548, PRS583 |
| PRS290-SS | 4.88 | 123.83 | 20.00 | 508.00 | PRS934, PRS705 |

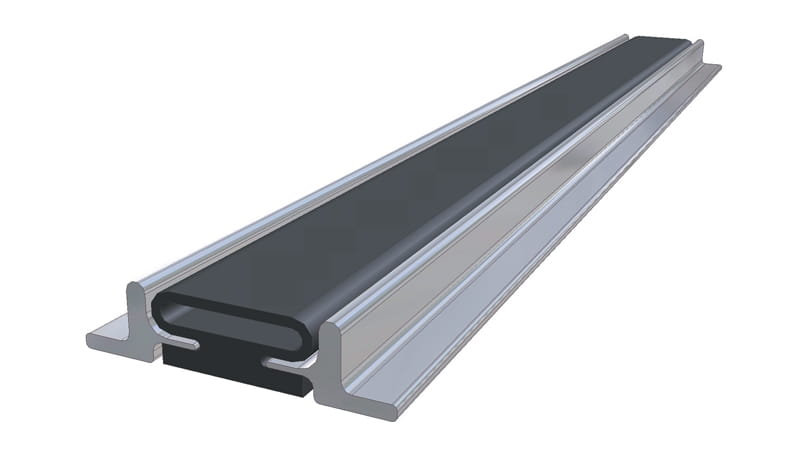

Two-Piece Aluminum Retainer for Type 1 Inflatable Profiles
The two-piece retention system may be used for the straight sections of an inflatable seal or clamp. One side is typically permanently welded or screwed in place; the other moveable to facilitate seal installation. When specifying this retention system, please note that you will need double the retainer footage to cover both sides of the seal. For example, a 4 foot section would require 8 feet of retainer - 4 feet for each side.
| Part No | Z (In) | Z (mm) | For Seal Profile |
| PR9494 | 3.13 | 79.38 | PRS537, PRS580 |
| PR5710 | 3.875 | 98.42 | PRS535, PRS582 |
| PR5223 | 4.875 | 123.83 | PRS548, PRS583 |
| PR5224 | 6.00 | 152.40 | PRS934, PRS705 |

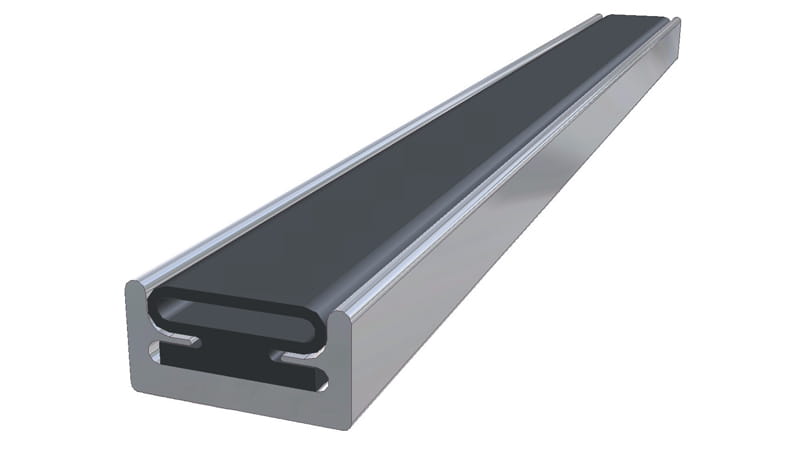

Slide-In Aluminum Retainer for Type 1 Inflatable Profiles
Slide-In retainers are typically used for straight inflatable clamps and actuators, because the part needs to be fed into the retainer from one end. They may also be used for u-shaped configurations.
| Part No | Z (In) | Z (mm) | For Seal Profile |
| PR4009 | 1.56 | 39.70 | PRS537, PRS580 |
| PR5690 | 2.50 | 63.50 | PRS535, PRS582 |
| PR6491 | 3.63 | 92.08 | PRS548, PRS583 |
Low Profile Slide-In Aluminum Retainer for Type 1 Inflatable Profiles
Our new Low Profile Slide-In retainer was designed to complement our upgraded Pneuma-Cel line of fabric reinforced bladder clamps. This retainer is also available in long lengths and is clear anodized.
| Part No | Z (In) | Z (mm) | For Seal Profile |
| PR36904 | 1.35 | 34.30 | PRS537, PRS580 |
Channel Dimensions for Type 10 and Other Profiles
The Type 10 and other profile designs rely on a properly designed channel to function correctly. View Pneuma-Seal standard profiles for available channel dimensions.
Snap-In Aluminum Retainer for Type 3 Inflatable Profiles
Our Type 3 inflatable profiles have a unique dovetail design to facilitate retention, however, this dovetail can be difficult to machine. To make it easier, we offer a number of different Snap-In retainer sizes to fit several of our fabric reinforced inflatable profiles.
| Part No | Z (In) | Z (mm) | For Seal Profile |
| PR3593 | 0.88 | 22.23 | PRS599 |
| PR3592 |
1.00 | 25.40 | PRS591, PRS598 |
| PR3406 | 1.25 | 31.75 | PRS581, PRS597 |
| PR4226 | 2.50 | 63.40 | PRS594, PRS708 |
Snap-In Rubber Retainer for Type 3 Inflatable Profiles
Similar to the Aluminum Snap-In retainer, these rubber profiles are extruded to mate up with a particular Type 3 profile, then the whole assembly may be installed within a channel or set of "L" brackets.
| Part No | Z (In) | Z (mm) | For Seal Profile |
| PR3073 | 1.50 | 38.10 | PRS581, PRS597 |
Machined Grooves for Type 3 Inflatable Profiles
Machined groove dimensions may be found in the Pneuma-Seal Profile Standards section in the Retainers tab. Note sign-in is required in order to view this information.
