Universal Air Connectors

Pneuma-Cel seals employ a universal air connector system. Connectors are most commonly located on the base of the profile, but, in the case of straight (as with Pneuma-Cel) or U-shaped configurations, can also be located out an end. Universal connectors cannot be located on the side of a profile. Depending on the width of the selected cross section, either a 10-32 or 1/8-27 NPT universal male fitting will be used. These will be permanently affixed to the universal connector, so it's ready for immediate use.

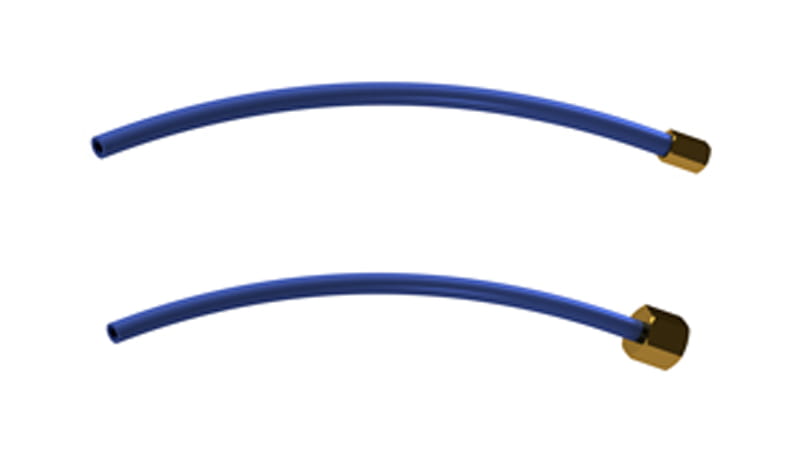

acv1

ACV1-1-100 / ACV3-1-100

1/4" OD blue polyurethane hose, 18" long, no adapter. For use with EPDM, Nitrile, and Neoprene profiles

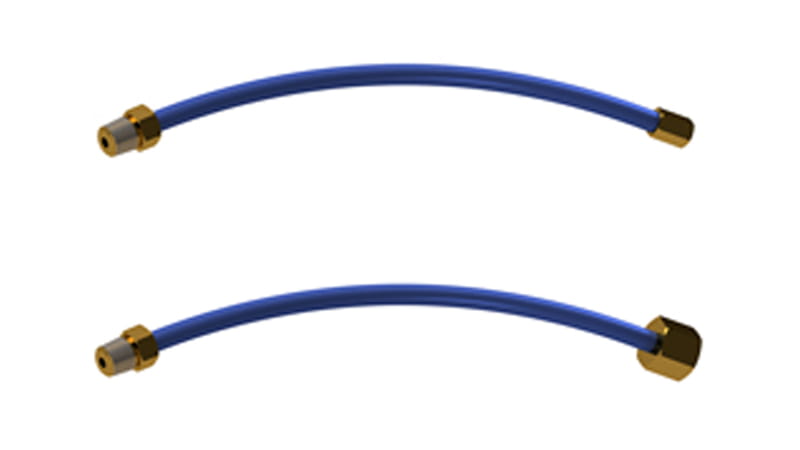

acv2

ACV1-1-101 / ACV3-1-101

1/4" OD blue polyurethane hose, 1/8-27 male NPT adapter (supplied loose). For use with EPDM, Nitrile, and Neoprene profiles

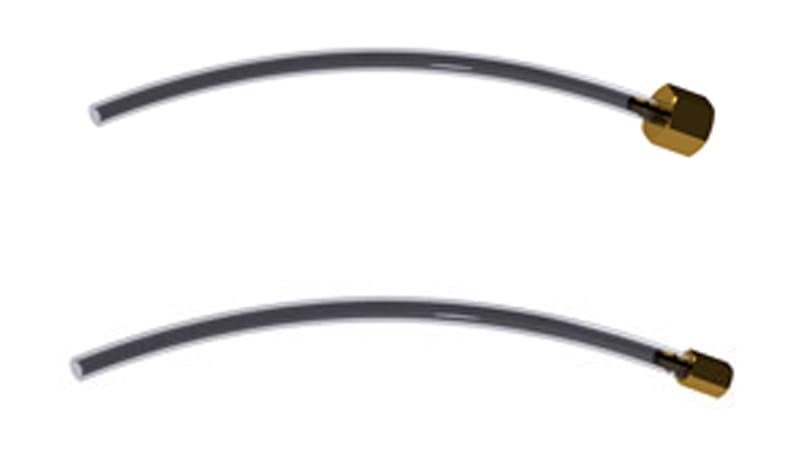

acv3

ACV1-2-100 / ACV3-2-100

1/4" OD clear high temp hose, 18" long, no adapter. For use with Silicone profiles

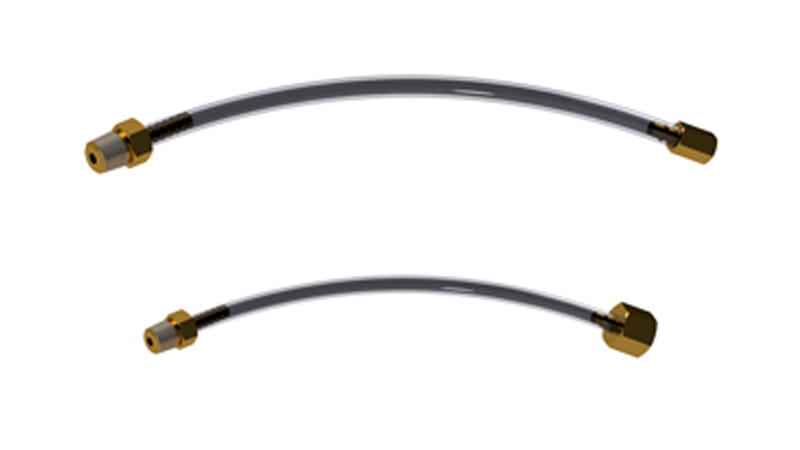

acv4

ACV1-2-101 / ACV3-2-101

1/4" OD clear high temp hose, 18" long, 1/8-27 male NPT adapter. For use with Silicone profiles
acv5

ACV1-2-102 / ACV3-2-102

1/4" OD clear high temp hose, 18" long, M8X1.0 male adapter. For use with Silicone profiles

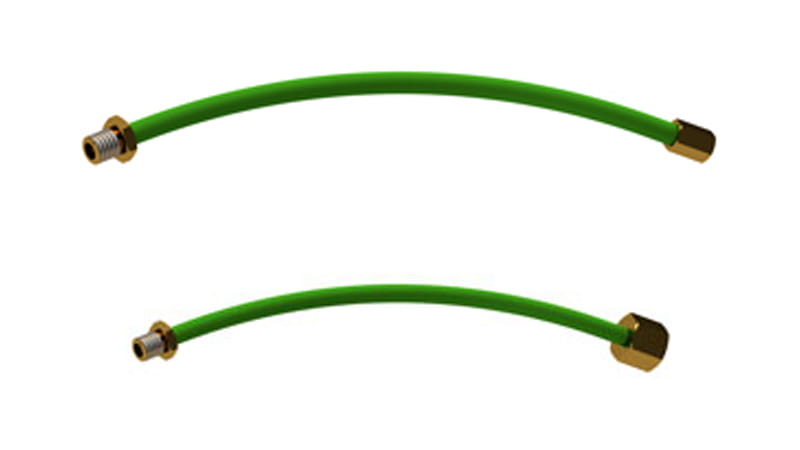

acv6

ACV1-3-102 / ACV3-3-102

6 mm OD green polyurethane air connector, M8X1.0 male adapter (supplied loose). For use with EPDM, Nitrile, and Neoprene profiles

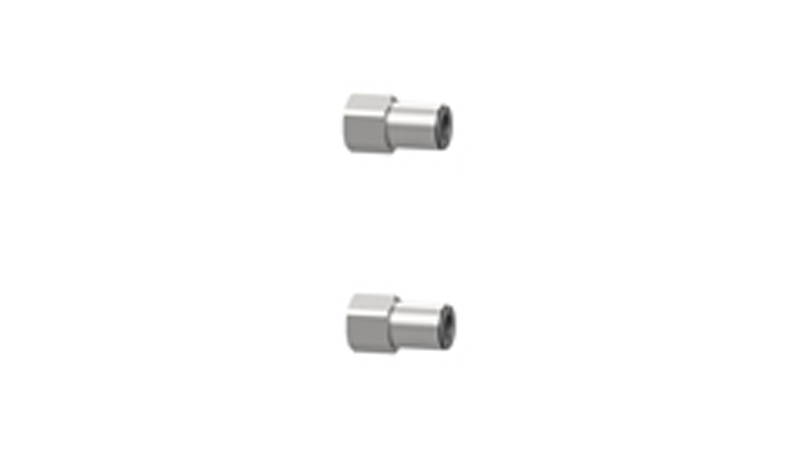

acv7

ACV1-4-100 / ACV3-4-100

1/4" Direct Push Connect Adapter. For use with all materials
