Type 7

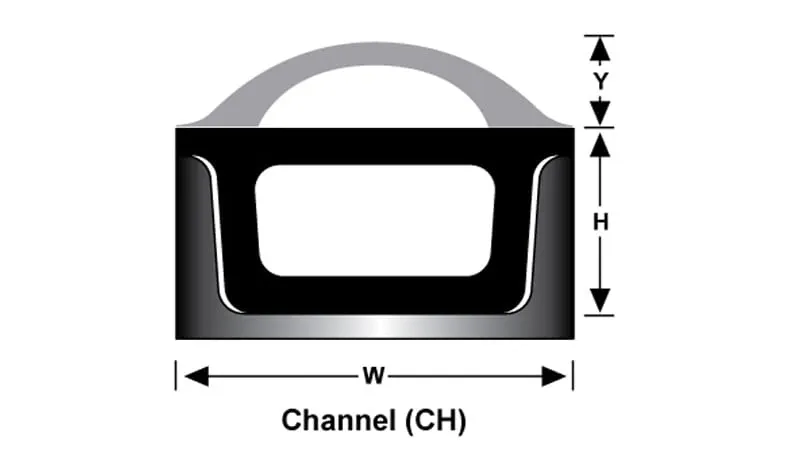

These channel style profiles handle heavy duty lifting and/or gripping applications and can be mounted in standard aluminum retainers.

Extruded

Style W mm H mm Y Gap mm
PRS576 CH 1.945 49.403 0.898 22.809 0.500 12.700
PRS505 CH 3.000 76.200 1.437 36.500 0.750 19.050
PRS436 CH 4.000 101.600 1.750 44.450 1.000 25.400

Molded, Fabric Reinforced

No profiles exist
Interested in using our pneumatic bladder clamps?
We have six (6) standard Pneuma-Cel sizes. Product details for the bladder and mating retainers are readily available. We even have a proposal form if you need something to submit to purchasing.
