Type 10

These heavy duty channel profiles can seal against high differential pressures, but the sealing gap must be relatively small. Four styles are readily available within the series - the "X"mesa-top profile, the "QB" square beaded profile, the "AB" angled bead profile, and the new, patent pending "SR" self-retaining style which can be installed without the use of adhesives. Axial, and radial expansion in/out configurations are common for this series.

Extruded

Style W mm H mm Y Gap mm

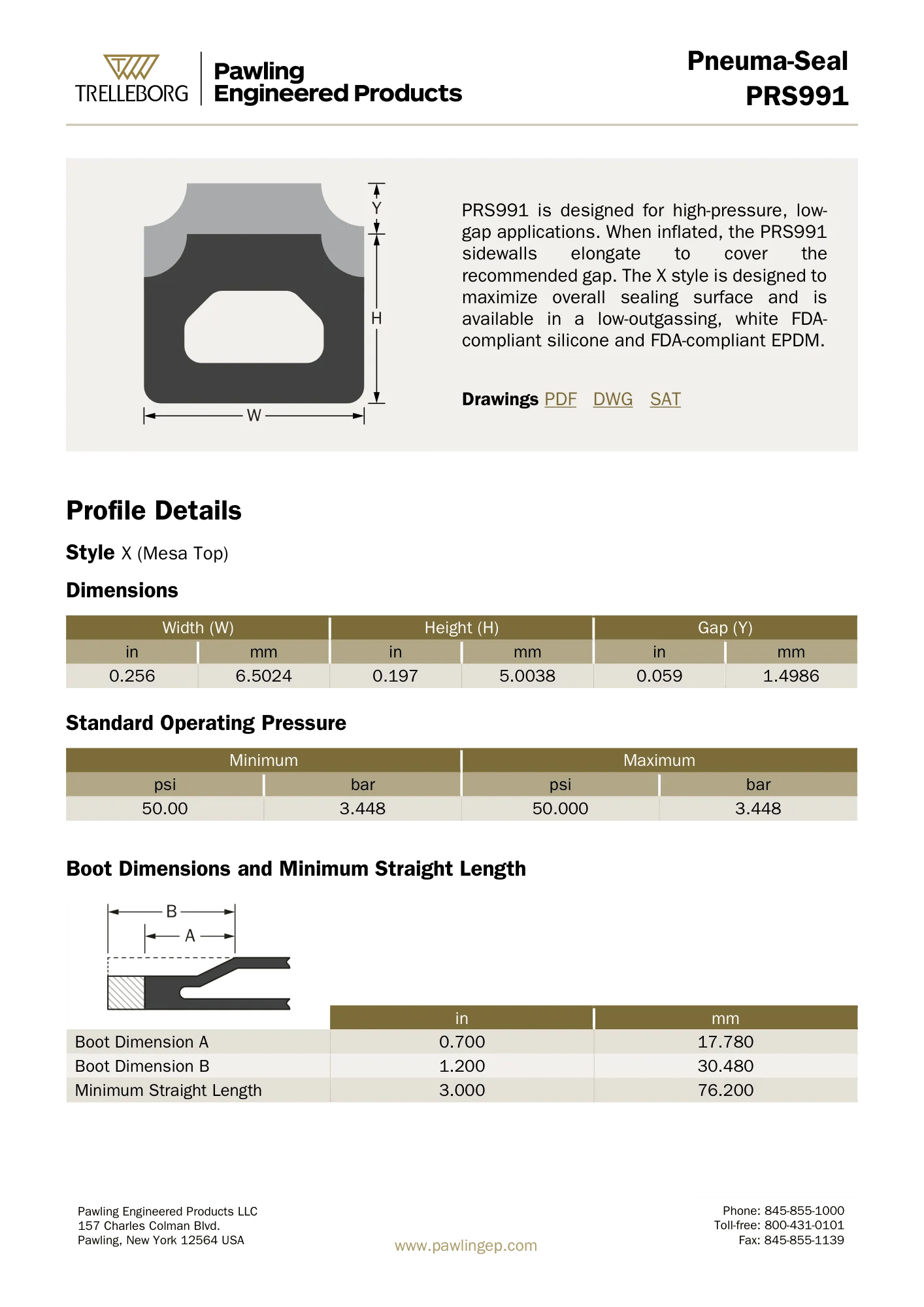

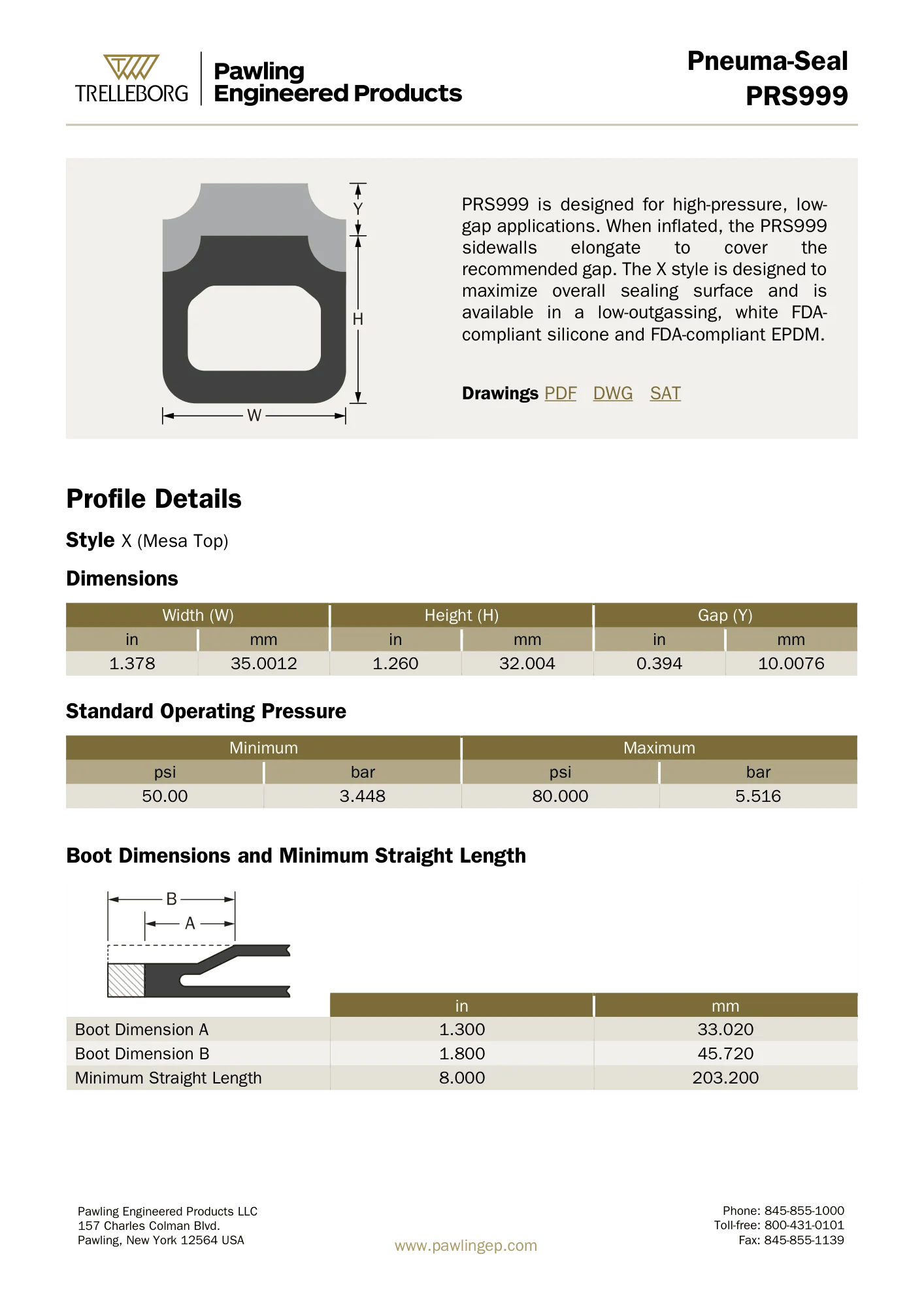

RS991 X 0.256 6.502 0.197 5.004 0.059 1.499
PRS973 AB 0.256 6.502 0.197 5.004 0.0314 0.8000
PRS977 AB 0.394 10.008 0.315 8.001 0.078 1.981

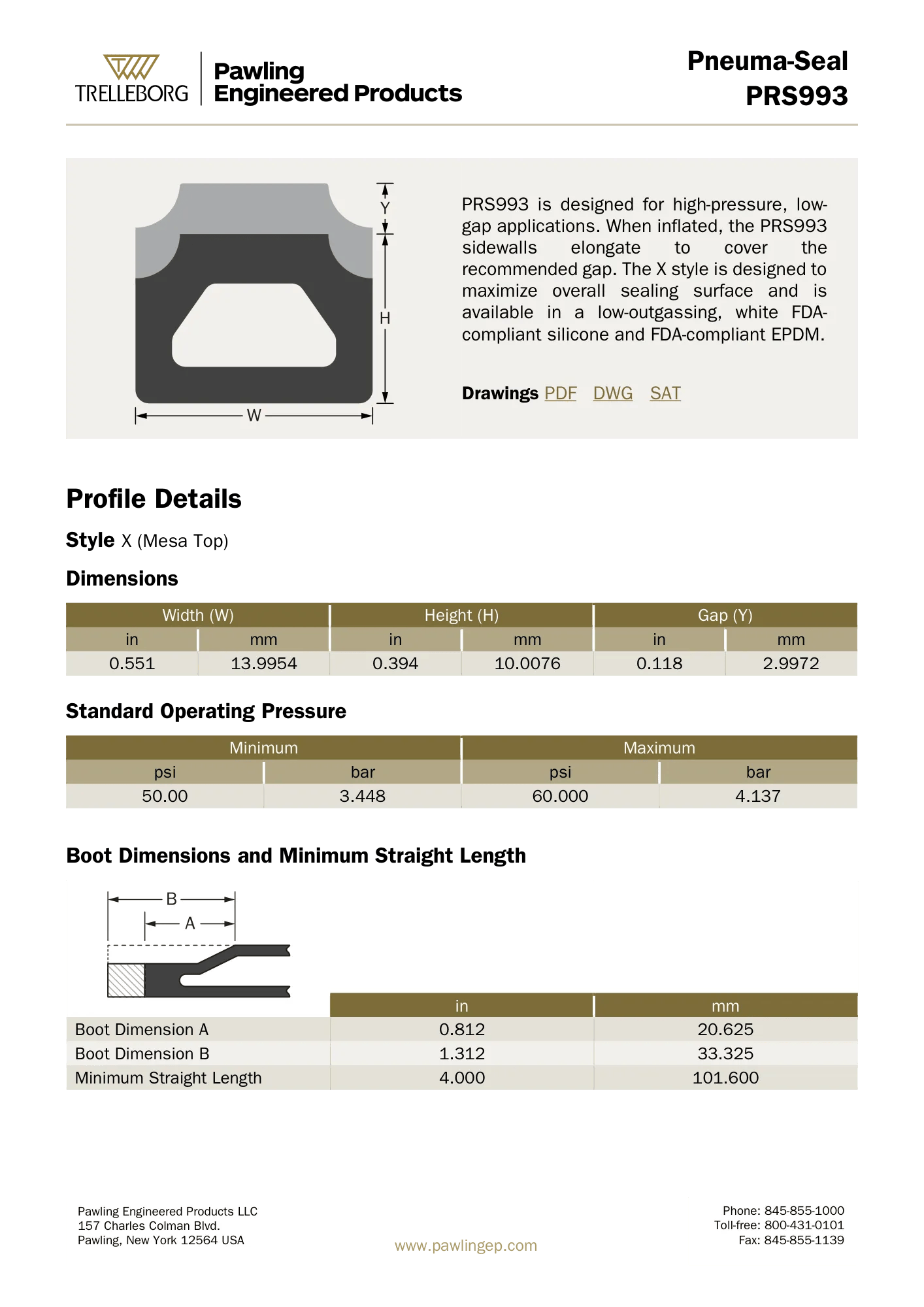

PRS993 X 0.551 13.995 0.394 10.008 0.118 2.997

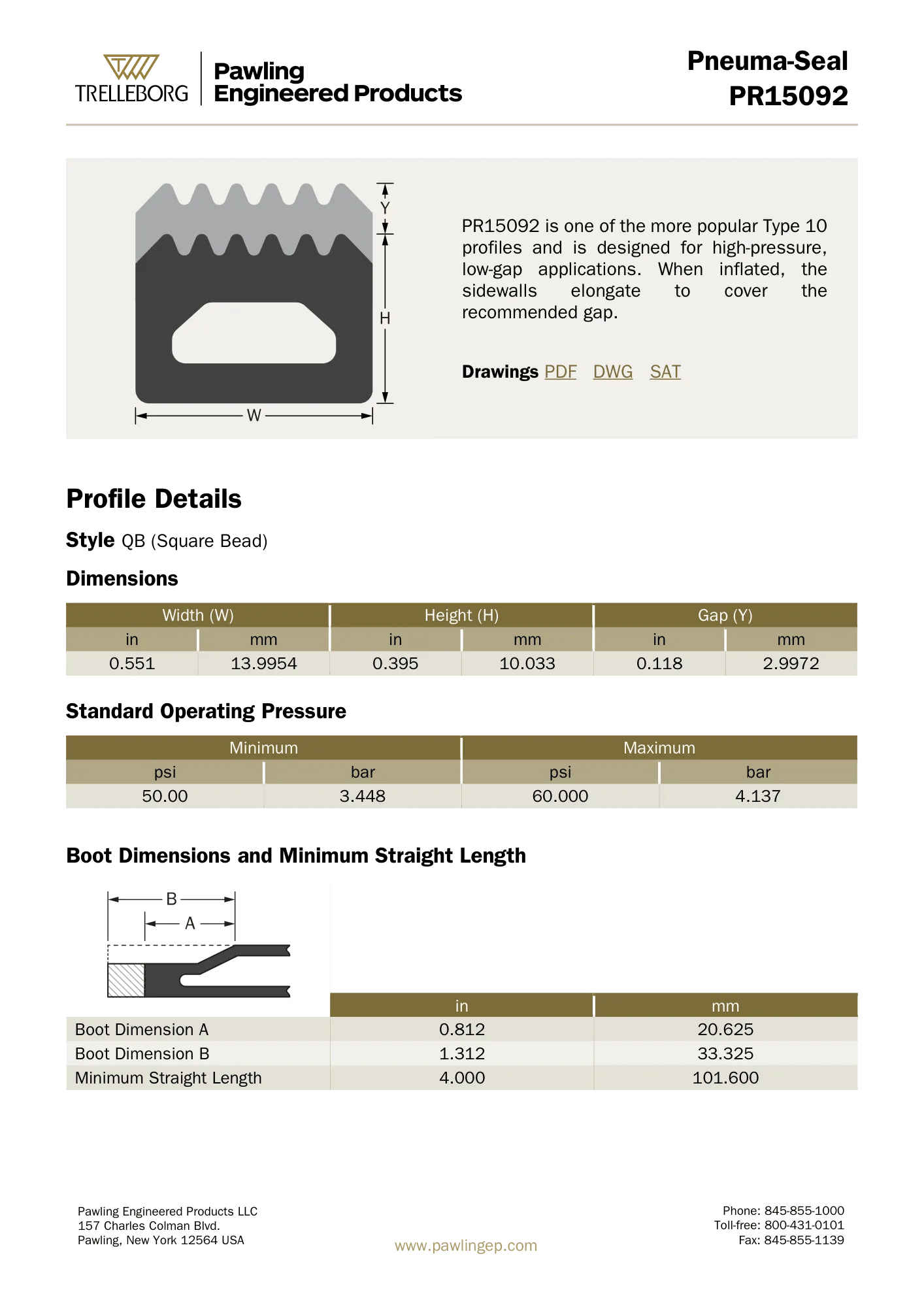

PR15092 QB 0.551 13.995 0.395 10.033 0.118 2.997
PRS693 SR 0.624 15.850 0.394 10.008 0.118 2.997

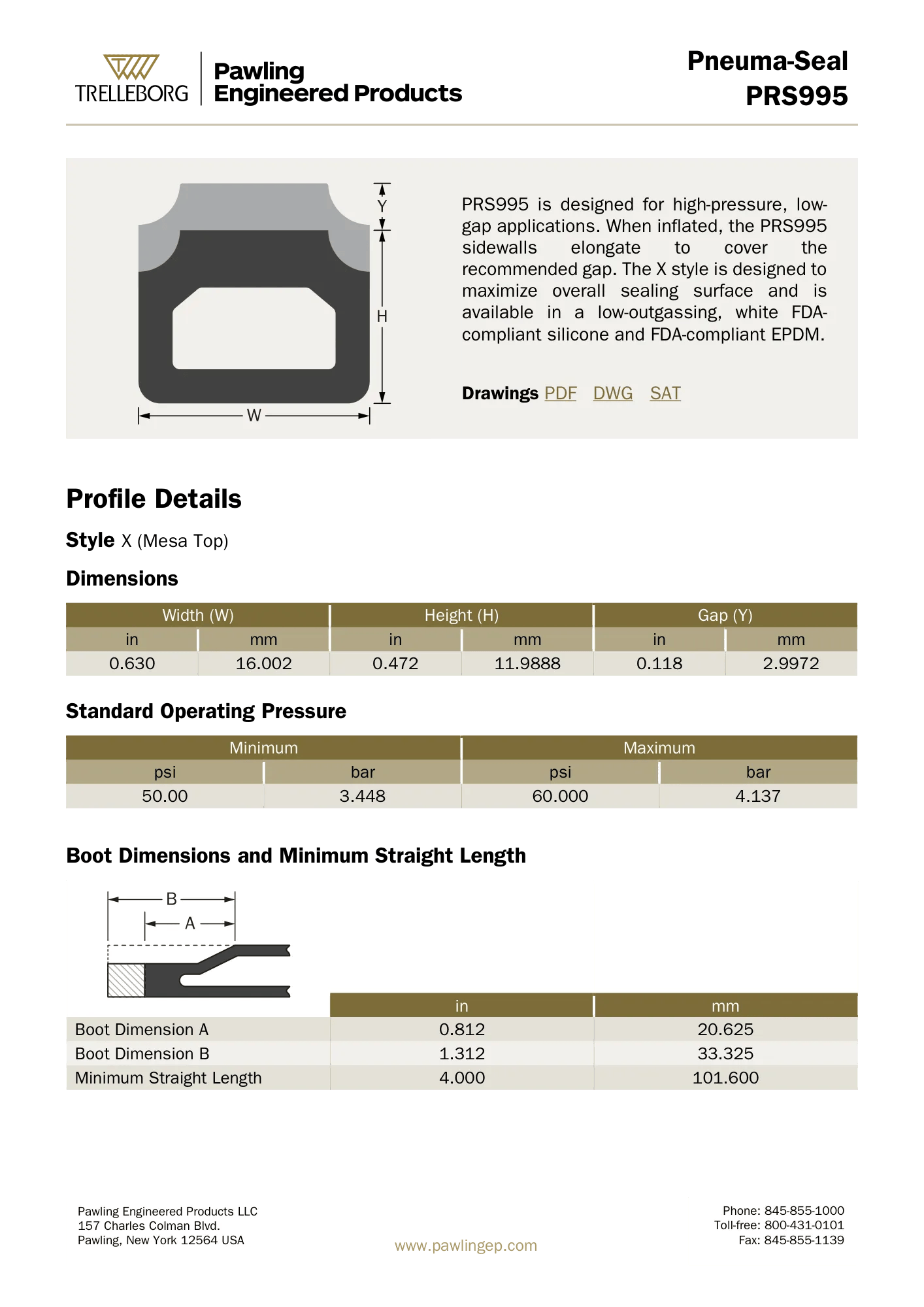

PRS995 X 0.630 16.002 0.472 11.989 0.118 2.997
PRS971 AB 0.630 16.002 0.551 13.995 0.138 3.505
PRS950 QB 0.630 16.002 0.472 11.989 0.118 2.997

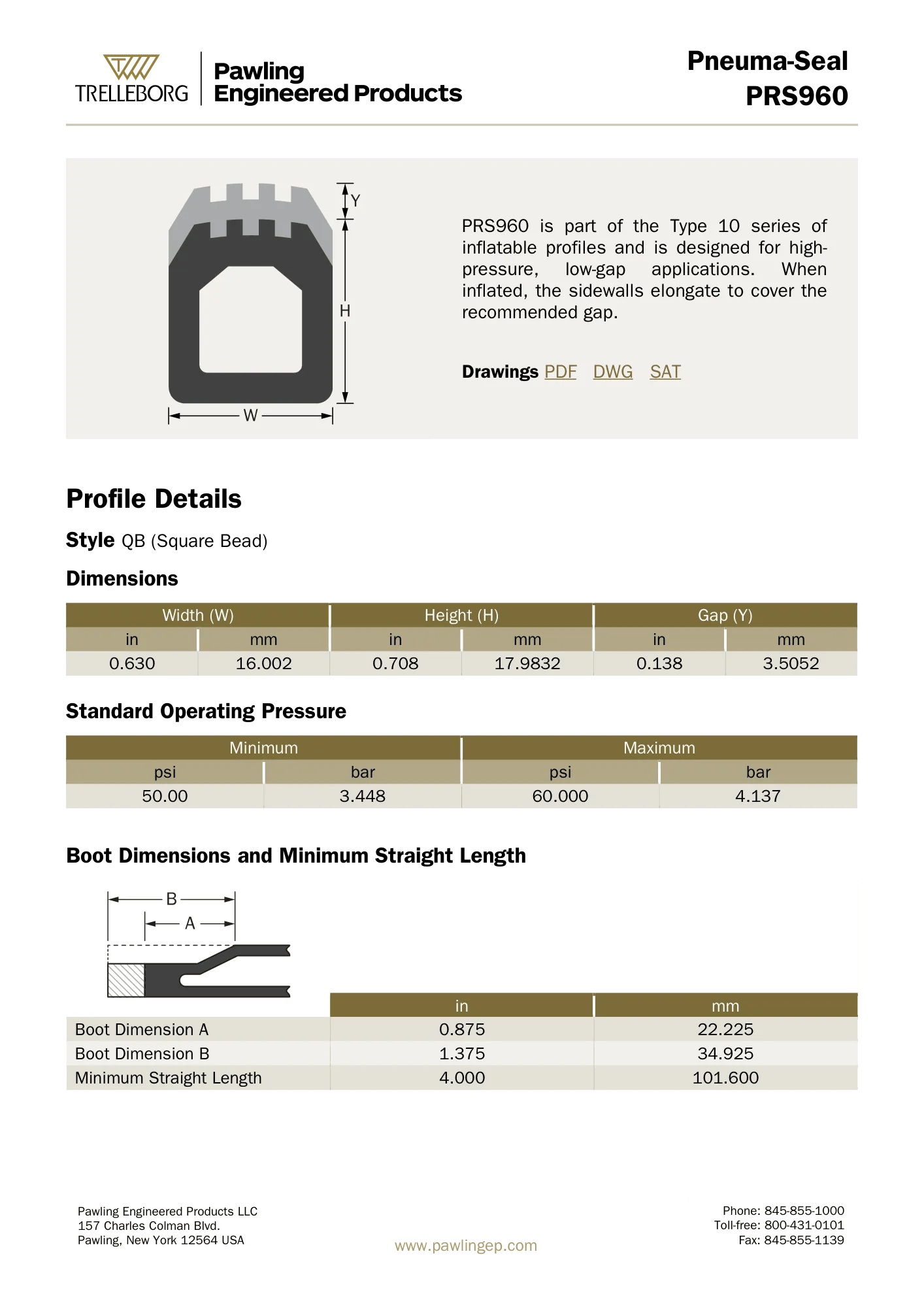

PRS960 QB 0.630 16.002 0.708 17.983 0.138 3.505

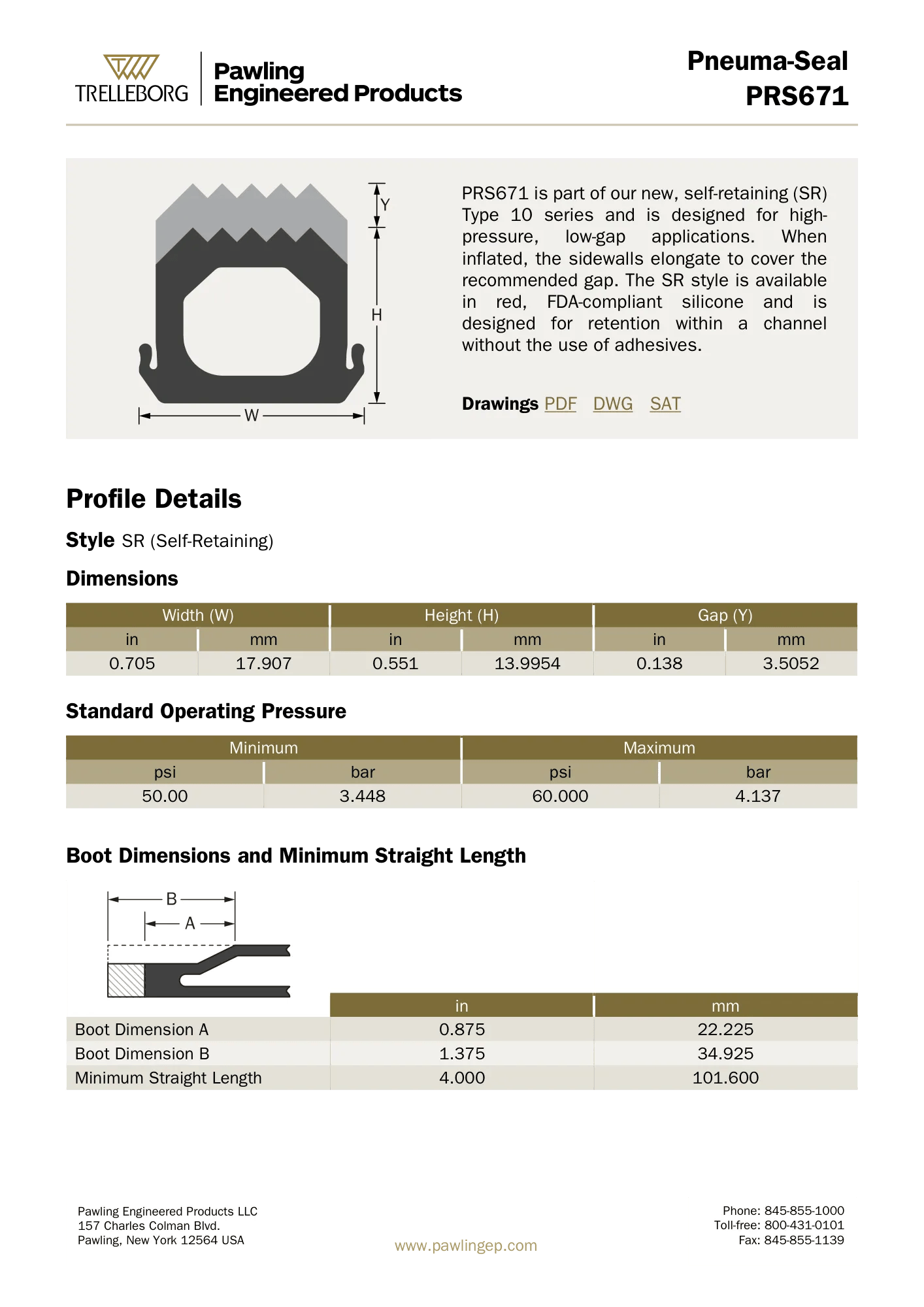

PRS671 SR 0.705 17.907 0.551 13.995 0.138 3.505
PRS969 AB 0.787 19.990 0.787 19.990 0.157 3.988
PRS970 AB 0.827 21.006 0.945 24.003 0.197 5.004

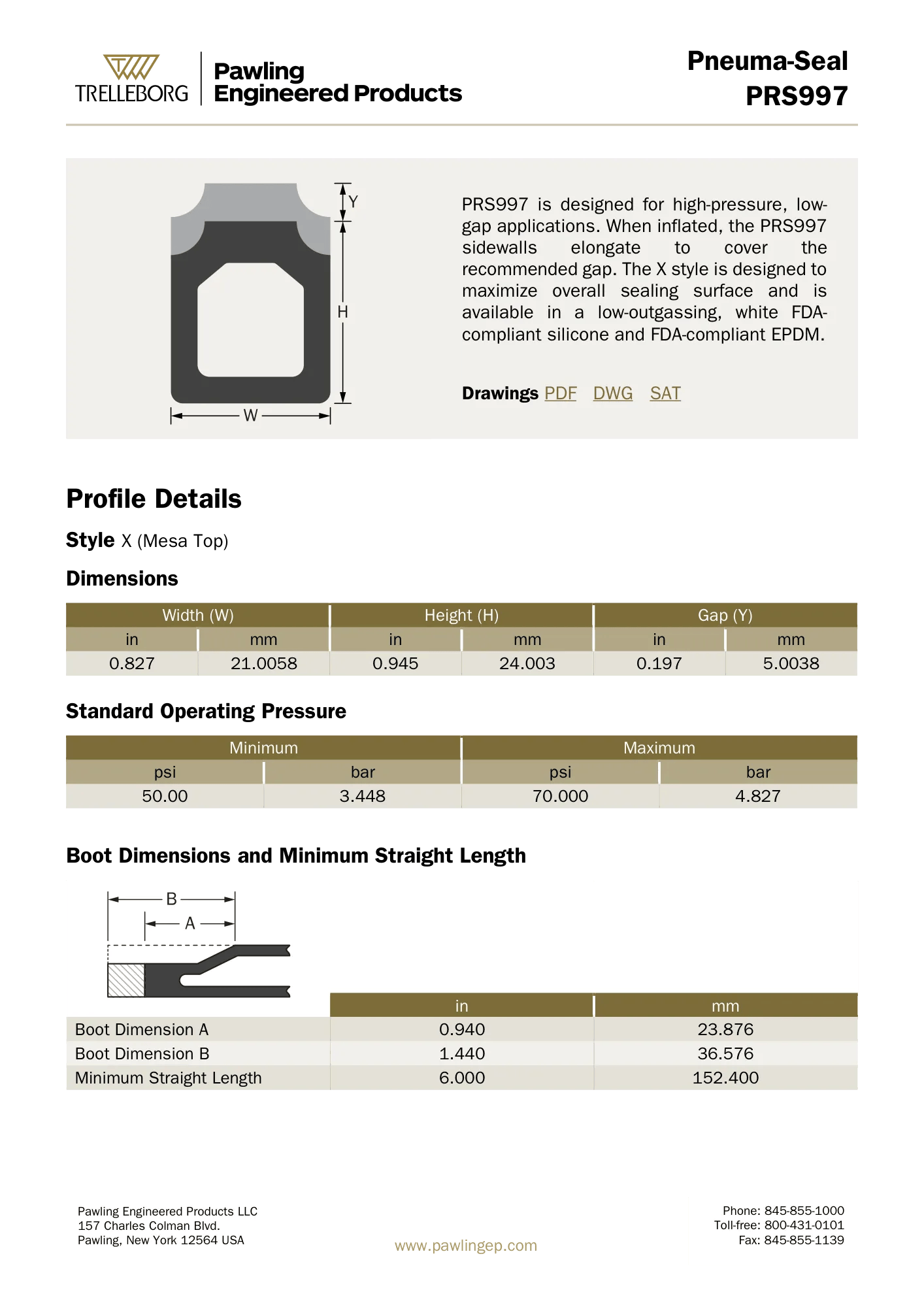

PRS997 X 0.827 21.006 0.945 24.003 0.197 5.004

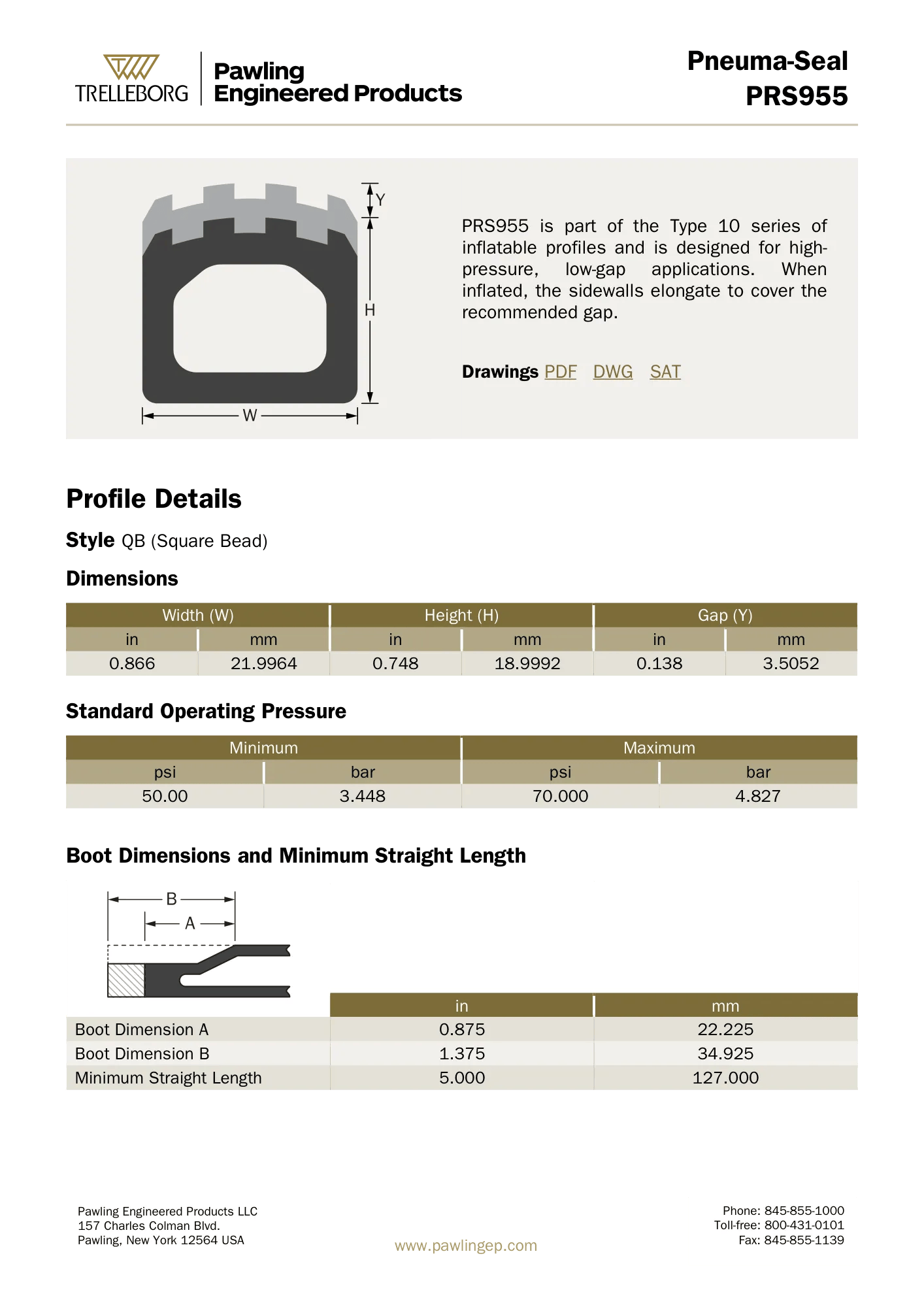

PRS955 QB 0.866 21.996 0.748 18.999 0.138 3.505

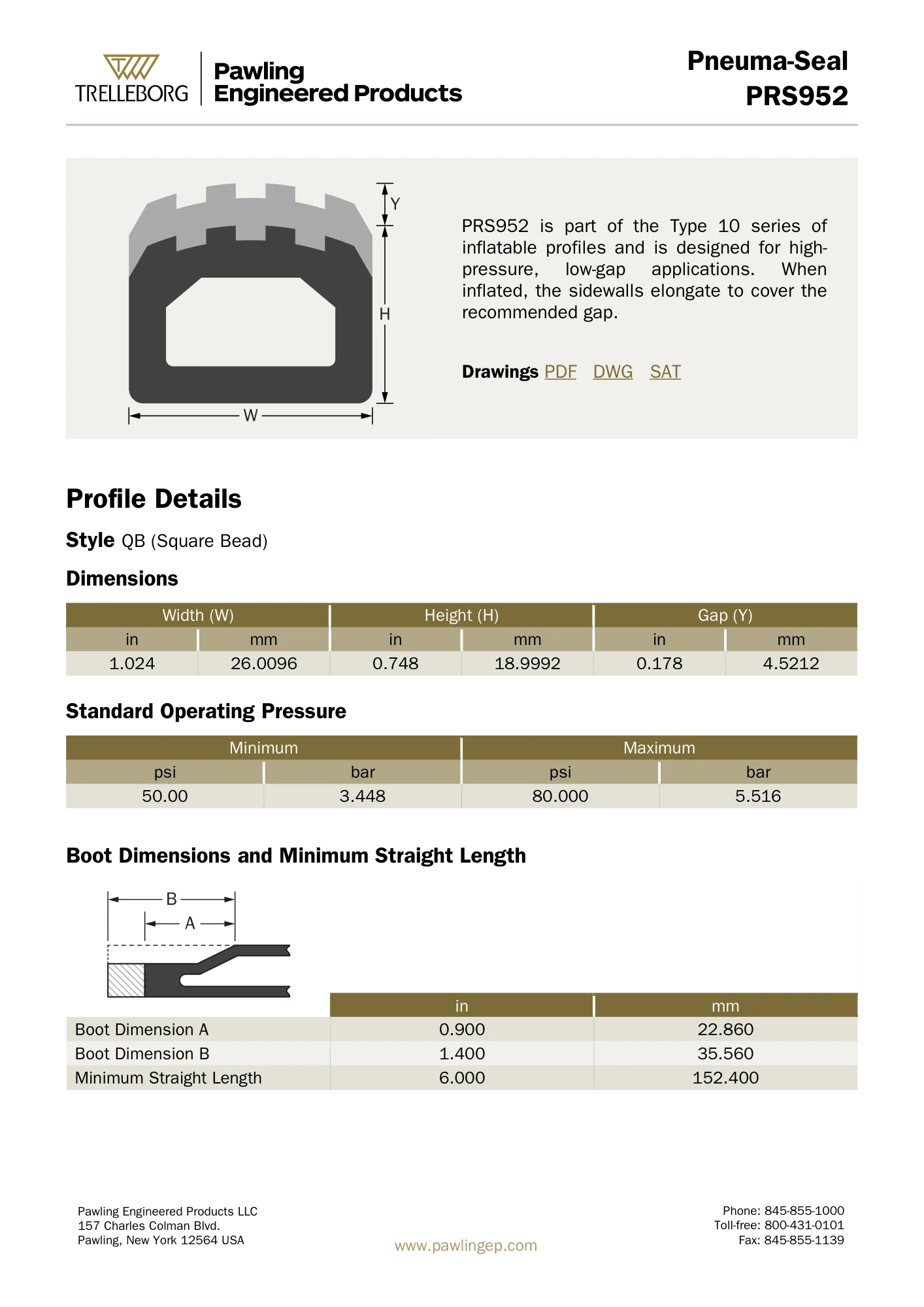

PRS952 QB 1.024 26.010 0.748 18.999 0.178 4.521
PRS966 QB 1.181 29.997 0.629 15.977 0.197 5.004

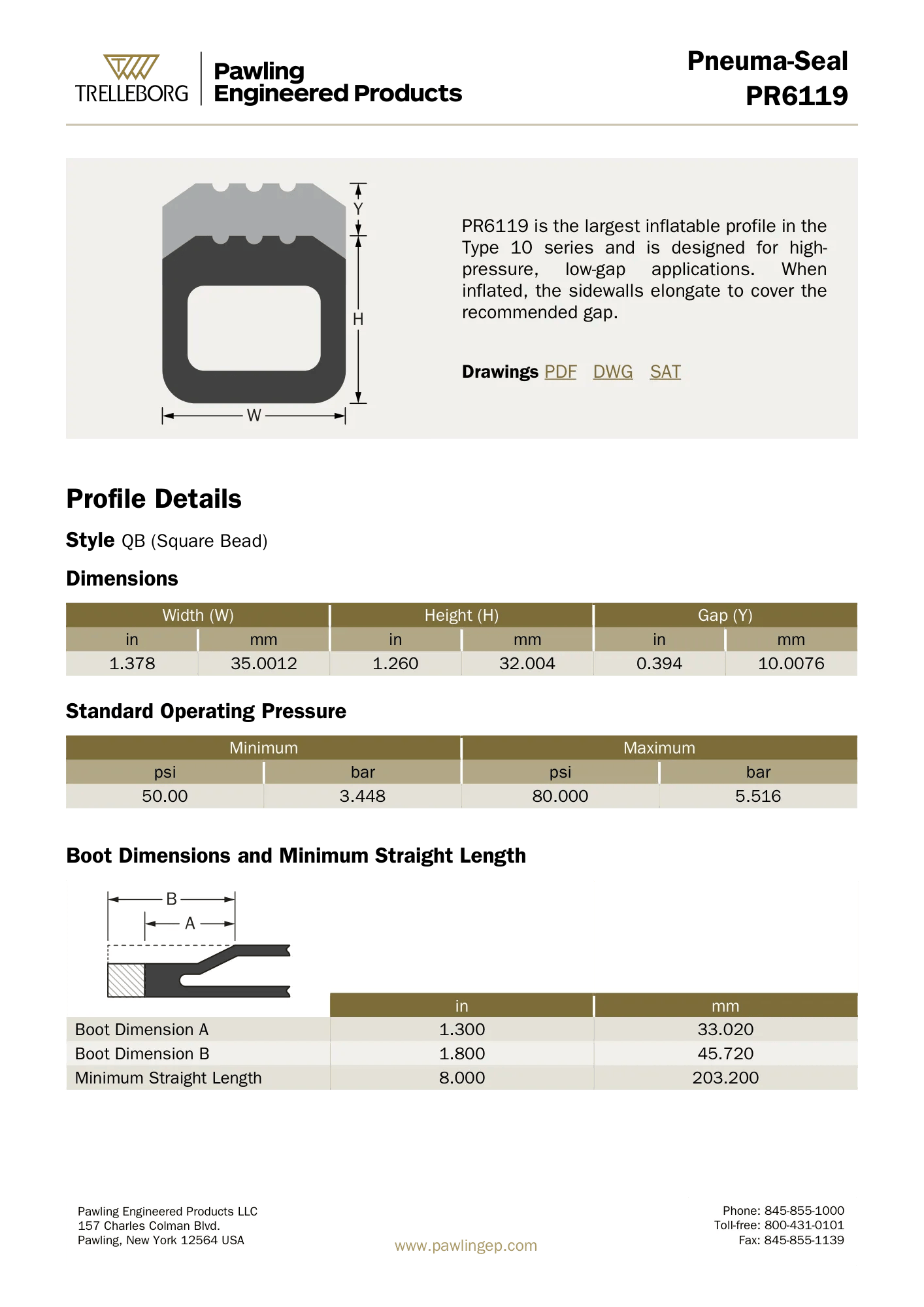

PR6119 QB 1.378 35.001 1.260 32.004 0.394 10.008
PRS999 X 1.378 35.001 1.260 32.004 0.394 10.008

Molded, Fabric Reinforced

No profiles exist
