Type 2

These profiles are designed primarily for tightly spaced endless radial expansion inward or outward sealing applications where the seal can be snap fit into a retainer groove. Straight and axial configurations are also available although adhesives may be required to keep the seal in place.

Extruded

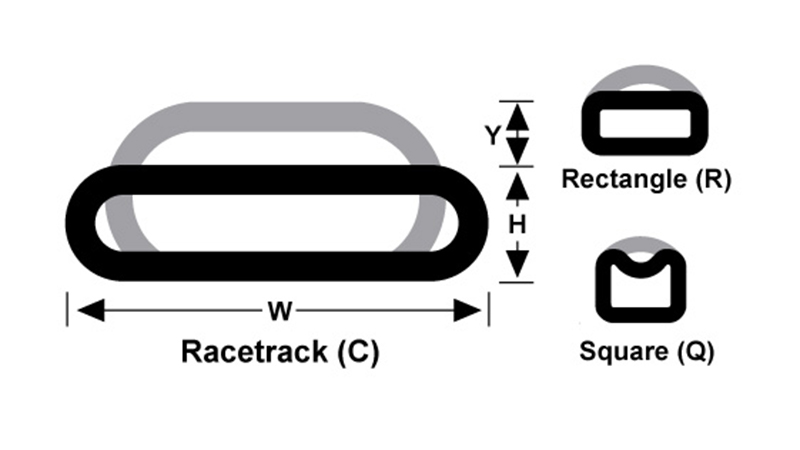

Style W mm H mm Y Gap mm
PRS900 R 0.405 10.287 0.187 4.750 0.093 2.362
PR10487 R 0.500 12.700 0.312 7.925 0.094 2.388
PR4982 Q 0.655 16.637 0.531 13.487 0.125 3.175
PRS554 R 0.703 17.856 0.352 8.941 0.188 4.775
PRS920 C 0.750 19.050 0.250 6.350 0.187 4.750
PRS102 R 0.928 23.571 0.312 7.925 0.187 4.750
PRS577 R 0.938 23.825 0.500 12.700 0.250 6.350
PRS903 C 1.250 31.750 0.375 9.525 0.375 9.525
PRS525 C 1.500 38.100 0.500 12.700 0.438 11.125
PRS509 C 1.500 38.100 0.375 9.525 0.375 9.525
PRS905 R 1.500 38.100 0.750 19.050 0.500 12.700
PRS571 R 1.625 41.275 0.250 6.350 0.438 11.125
PRS423 C 2.000 50.800 0.500 12.700 0.750 19.050
PRS564 C 2.500 63.500 0.500 12.700 0.875 22.225
PRS520 C 3.000 76.200 0.750 19.050 1.000 25.400
PRS578 C 3.250 82.550 0.500 12.700 1.000 25.400
PR10287 C 5.640 143.256 1.210 30.734 1.750 44.450

Molded, Fabric Reinforced

Style W mm H mm Y Gap mm
PRS733 C 0.750 19.050 0.375 9.525 0.125 3.175
PRS701 C 1.250 31.750 0.375 9.525 0.375 9.525
PRS702 C 2.000 50.800 0.500 12.700 0.750 19.050
PRS703 C 3.000 76.200 0.750 19.050 1.250 31.750
PRS706 C 4.000 101.600 1.000 25.400 1.750 44.450
