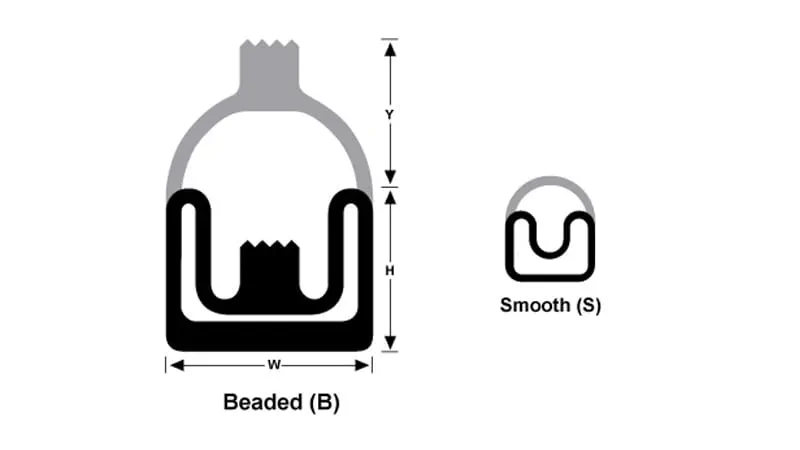

type4detail_280

Type 4

Similar to the Type 3 profiles, these designs cover a large gap for their width and can be easily retained within a square channel.

Extruded

Style W mm H mm Y Gap mm
PR6648 S 0.930 23.622 0.750 19.050 0.375 9.525

Molded, Fabric Reinforced

Style W mm H mm Y Gap mm
PRS715 B 0.540 13.716 0.440 11.176 0.375 9.525
PRS707 B 0.656 16.662 0.437 11.100 0.438 11.125
Interested in using our pneumatic bladder clamps?
We have six (6) standard Pneuma-Cel sizes. Product details for the bladder and mating retainers are readily available. We even have a proposal form if you need something to submit to purchasing.
